Model No.: CWYS-

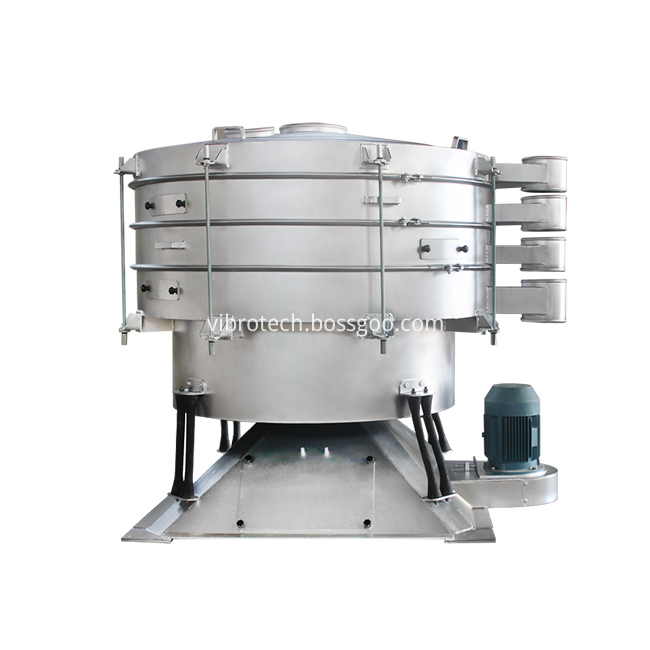

The circular swing sieve is an efficient screening machine which is designed to meet the large output , high screening accurate of manufacture. The movement is similar with hand screening. Because of the motion trajectory of the griddle box, the circular swing sieve is also called compound circle screen. The vibration force produced by the drive system is a kind of inertia force which is circling the dead axle and changing regularly. It is suitable for fine powder,needle shape material etc.
when the machine begins to work,the vibrating part---the screen box takes circling motion under the influence of the vibrating force.The screen box drive the sieve to take circling motion periodicity,The materials is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. so the material on screen surface take bounce motion,meanwhile,the material less than the aperture drop to the next deck,and the oversize are discharged by the outlet. Finally, the screening work is completed. From the aspect of its structure and working principle, the exciter can in two ways according to the motion of the material, uniformly or contrarily. As a result, we'd better make a choice between throughput and efficiency according to our practical demand.
Features of circular swing sieve
1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
5.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
| Model || Screen slope || |
Screen mesh area
| CWYS-600 || 0-100 || 0.28 || 220-280 || <100 || 20-70 || 0.75 |
| CWYS-1000 || 0.66 || 220-280 || <100 || 20-70 || 1.5 |
| CWYS-1200 || 0.98 || 220-280 || <100 || 20-70 || 2.2 |
| CWYS-1500 || 1.67 || 220-280 || <100 || 20-70 || 3.0 |
| CWYS-1800 || 2.37 || 220-280 || <100 || 20-70 || 4.0 |
| CWYS-2000 || 2.89 || 220-280 || <100 || 20-70 || 4.0 |
| CWYS-2600 || 5.3 || 220-280 || <100 || 20-70 || 5.5 |
